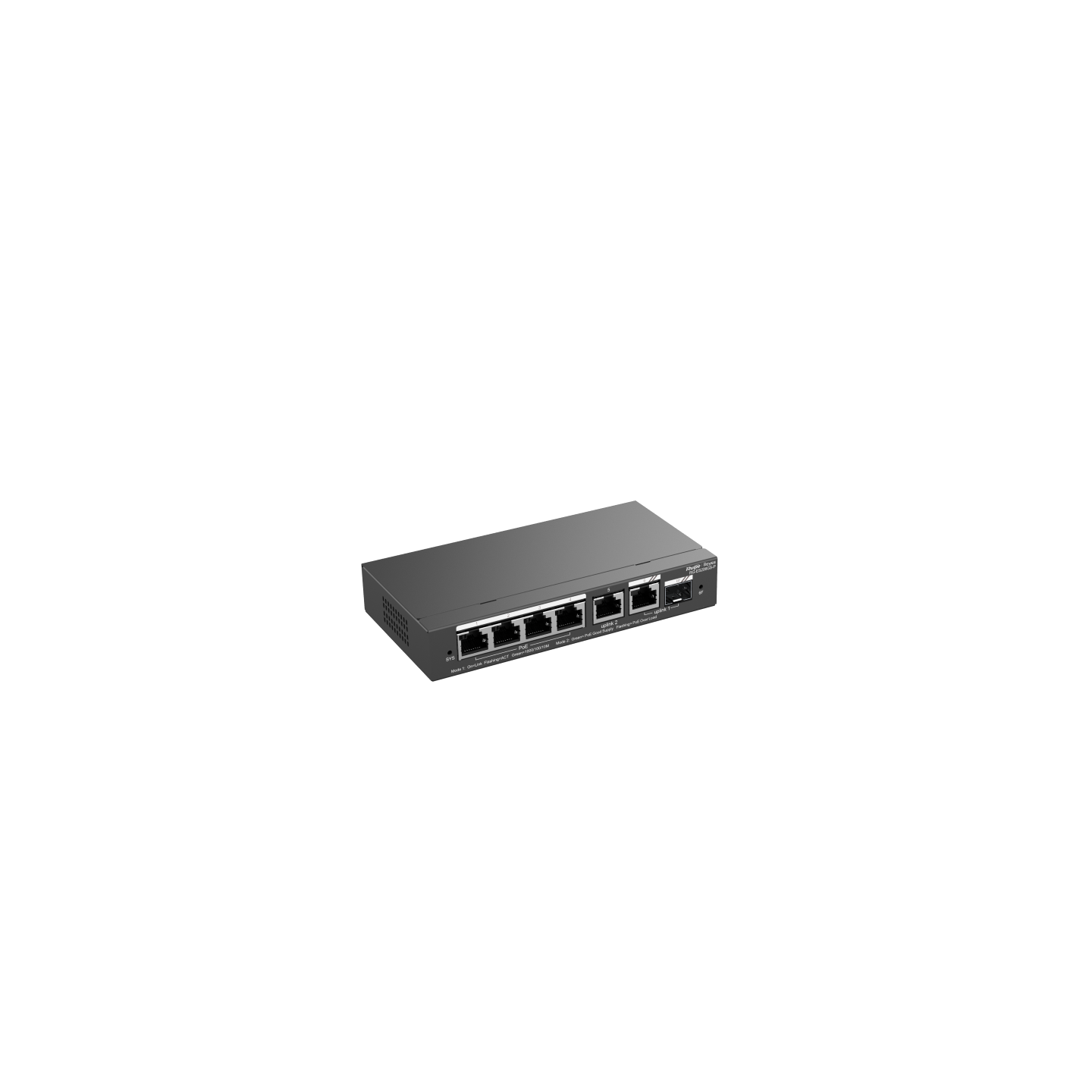

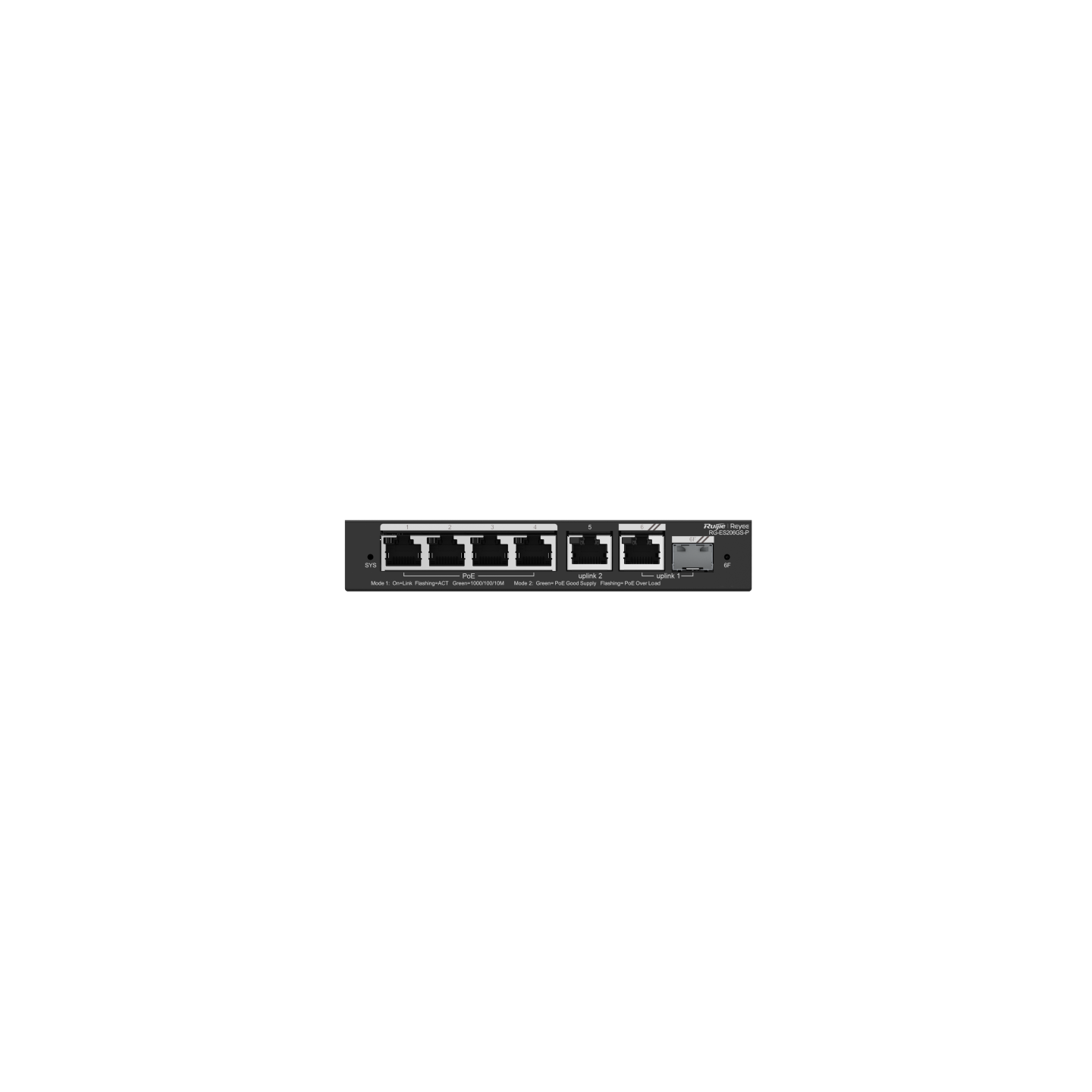

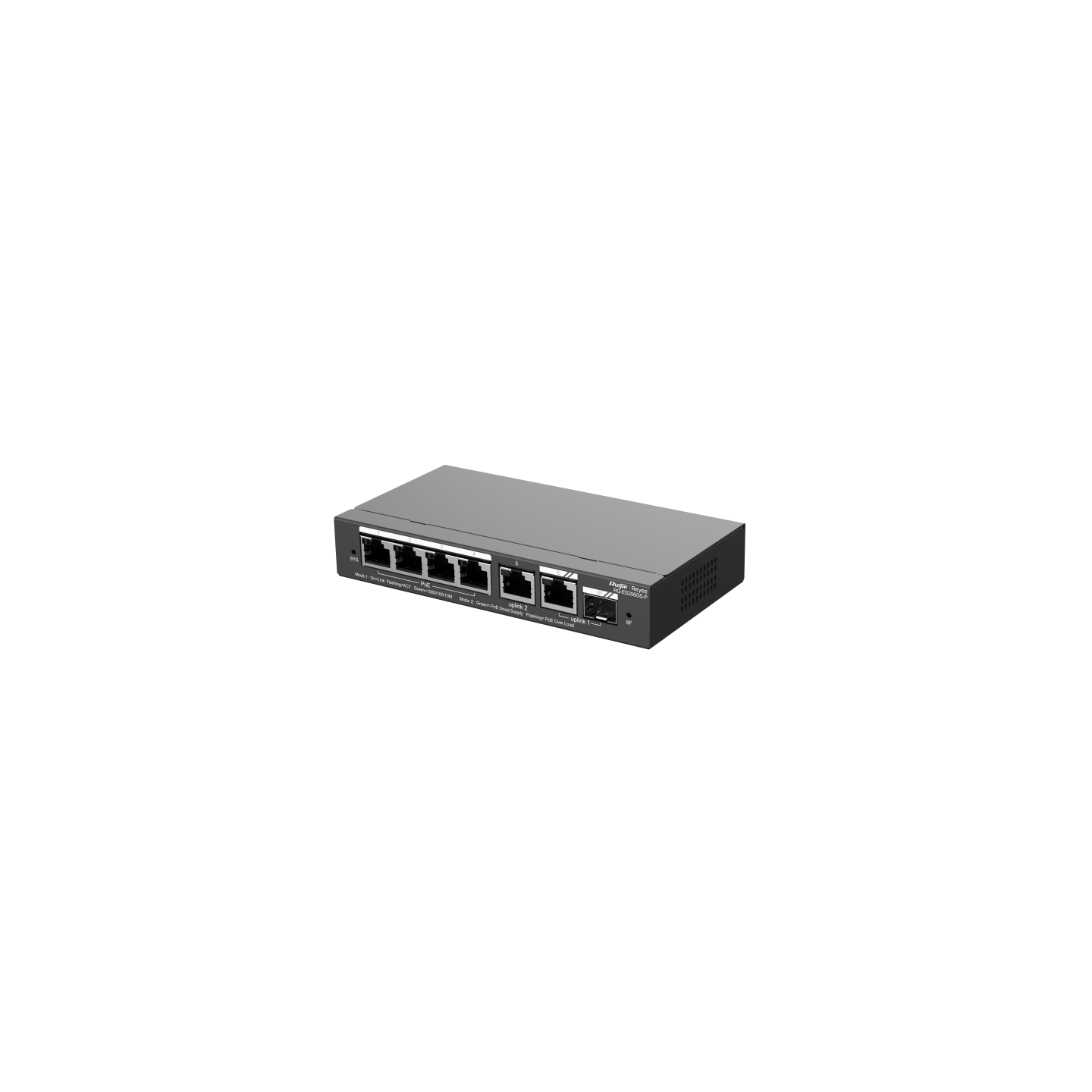

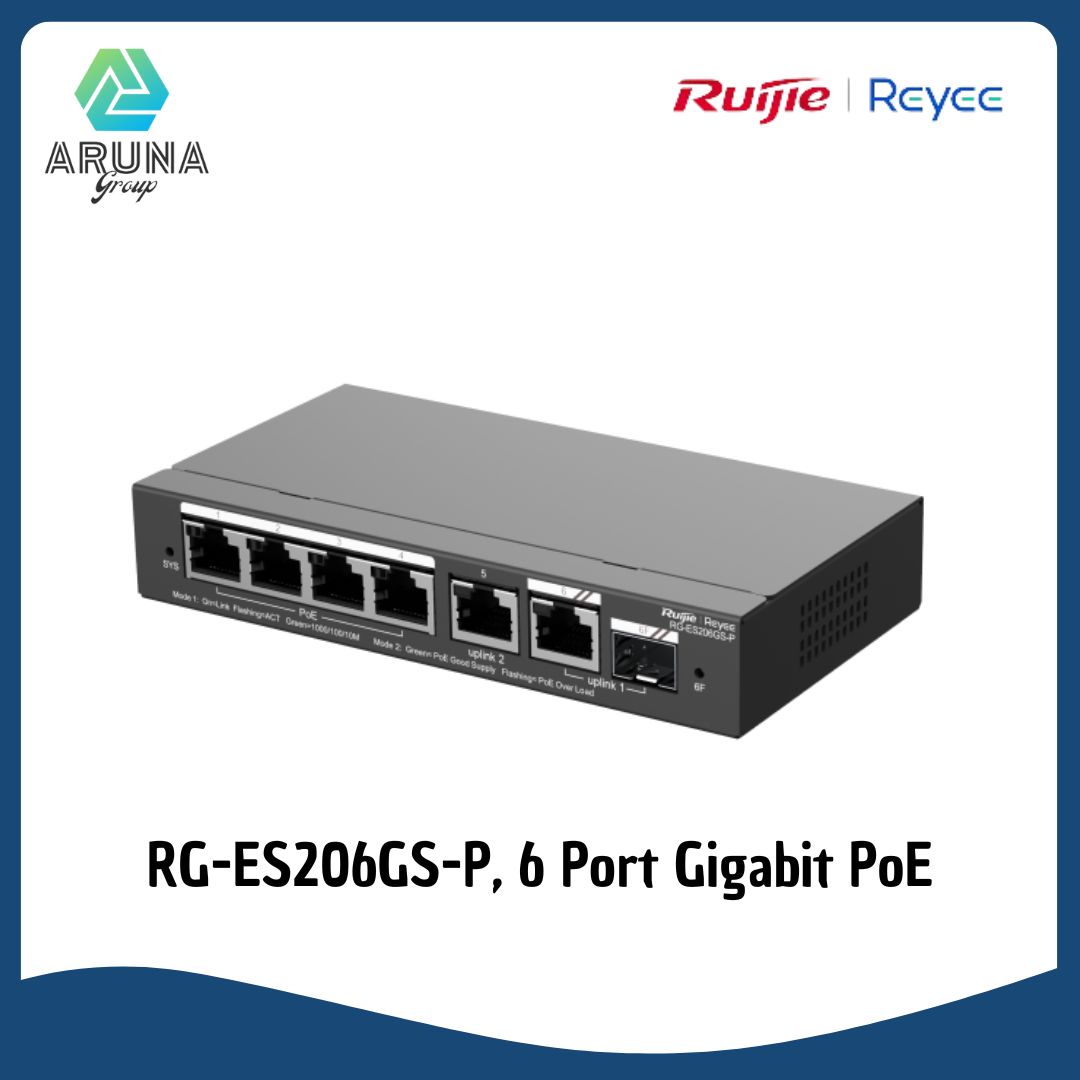

Ruijie Reyee RG-ES206GS-P, 6-Port Gigabit Smart Cloud Managed PoE Switch

Rp. 976,000 / pcs

Highlight Features

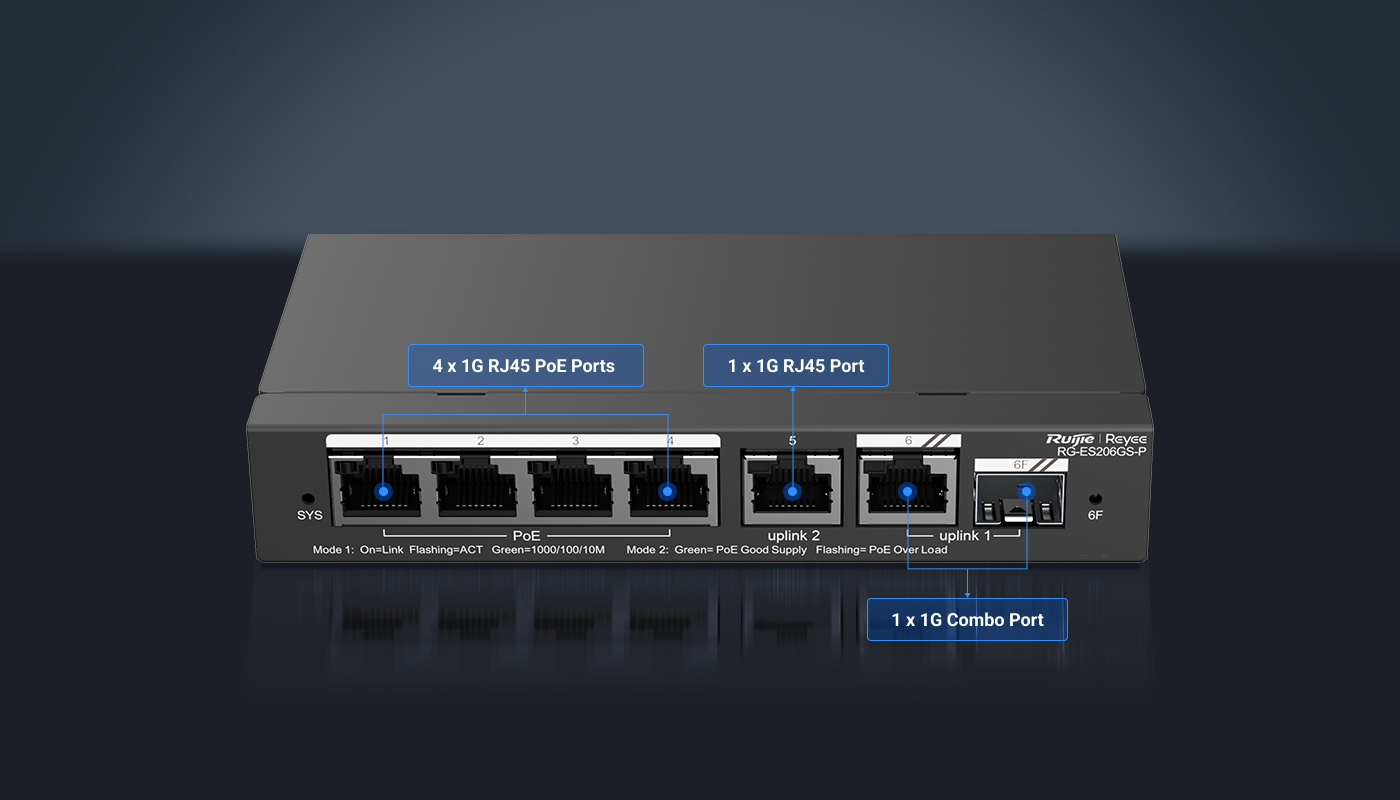

6-Port Gigabit Managed Switch with 4 PoE+ Ports, 1 Combo Port

• Cost-Effective Smart Cloud Managed Switches
• IP Camera Recognition, Unique Value for CCTV Network
• Automatic Loop Prevention Ensures Service Continuity
• Lifetime management on Ruijie Cloud at anytime anywhere

Key Specification

Hardware Specifications

Product Information

Warranty : 3 years

Port Specifications

Total number of RJ45 ports : 6

Total number of optical ports  : 1

Number of 1GE combo ports : 1

Number of 1GE SFP ports : 1

Number of 10/100/1000BASE-T ports : 6

Power Supply and Consumption

Number of PoE Out ports : 4

Number of PoE/PoE+ Out ports : 4

PoE budget : 54 W

PoE power pins : 1–2 (+), 3–6 (-)

System Specifications

Forwarding rate : 8.9 Mpps

Switching capacity : 12 Gbps(bit/s)

Environment and Reliability : Operating temperature

• 0°C to 40°C (32°F to 104°F)

Software Specifications : Basic Configurations

PoE watchdog : Yes

Security : Port isolation Yes

Order Information

Device	RG-ES206GC-P
Power Supply	Power Adapter
Quick Start Guide	1
Warranty Card	1
Accesories	-
Package Weight	0.79 kg
Package Dimension (w x d x h)	249 mm x 217 mm x 62 m

https://reyee.ruijie.com/en-global/products/reyee-switch/smart-cctv-switch/es206gs/
