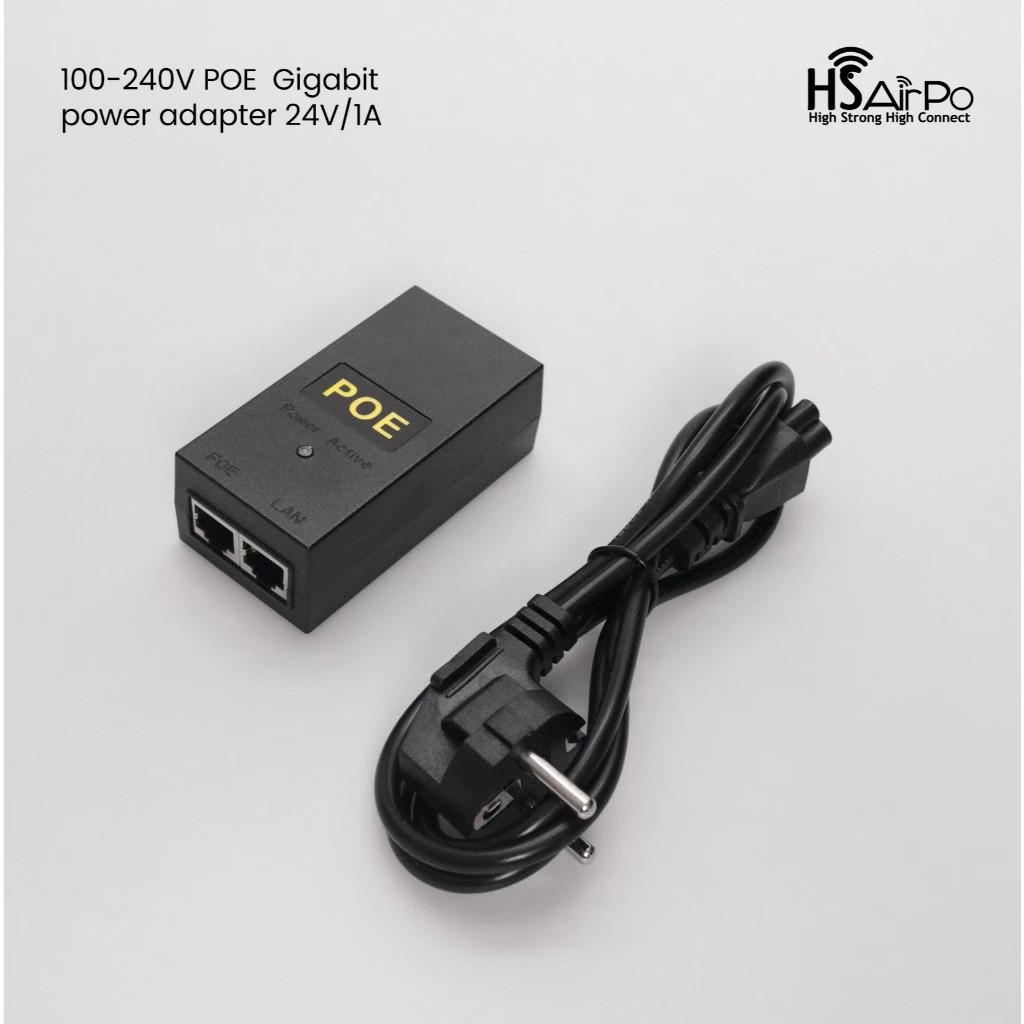

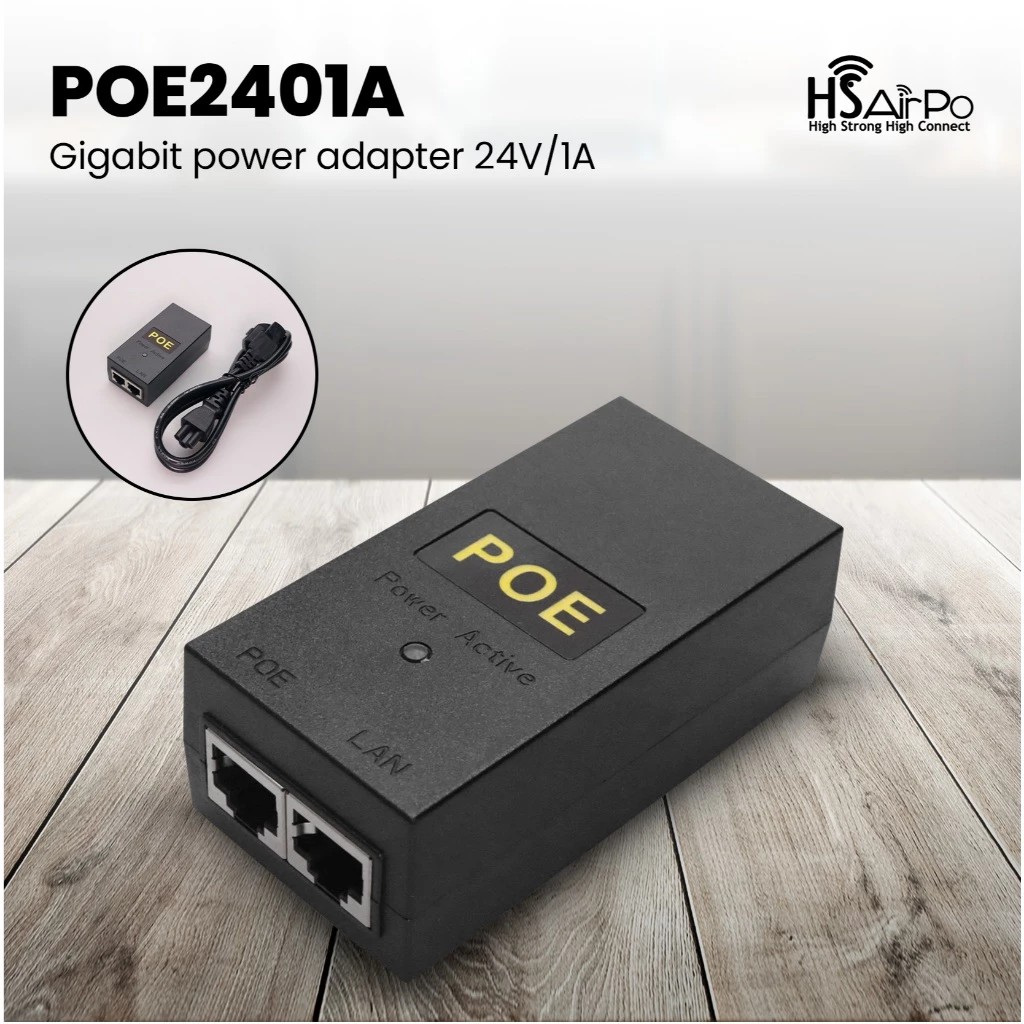

HSAirPo POE2401A POE Power Over Injector Passive Ethernet Adaptor POE 24V/1A

Rp. 49,000 / pcs

Fitur

-Standard PD port power supply priority function.

-Forwarding Rate: 10/100BASE-TX:148800pps/port

-Short circuit, over-current, and over-voltage protection

-System reliability: MTBF>;100k hours

-EN55022 and CLASS B standard CE, RE.

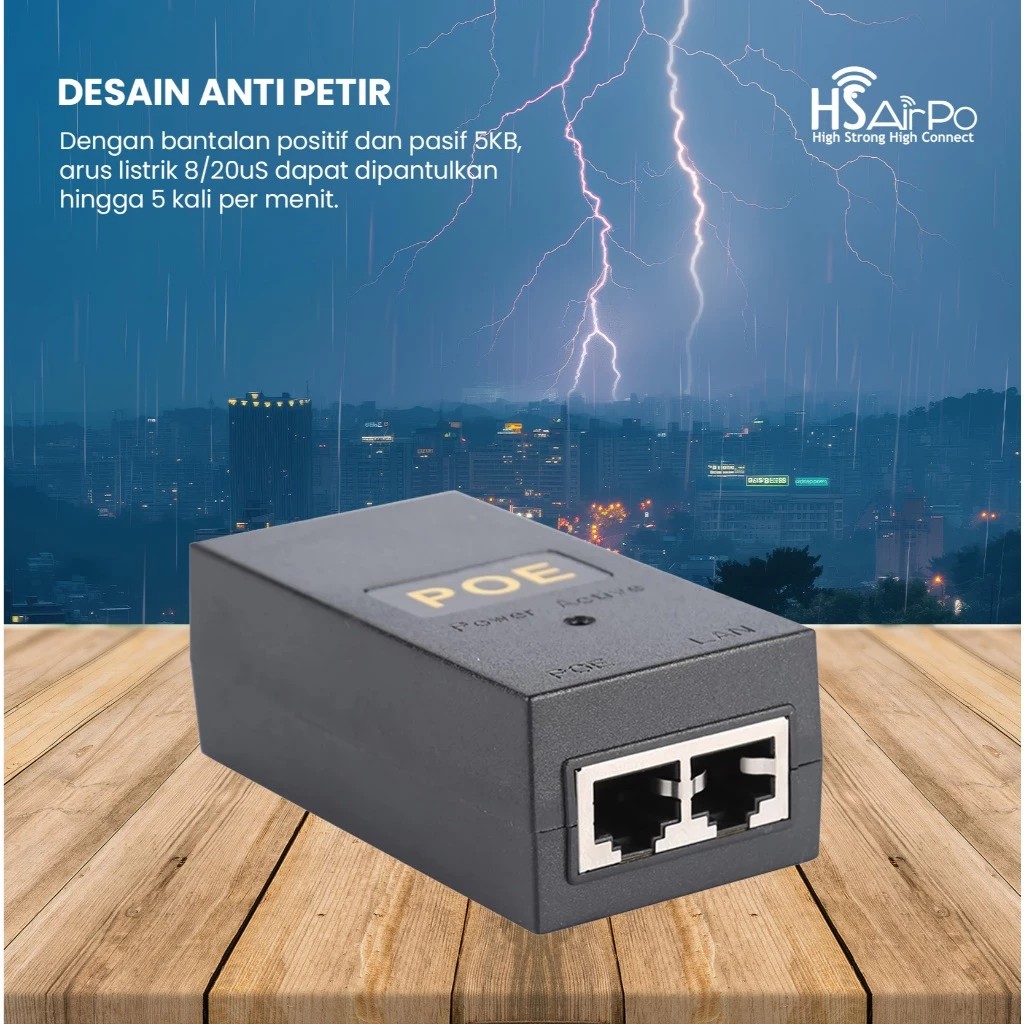

-Anti-thunder design, bearing positive and passive 5KB, 8/20uS electric showave up to 5 times for every minute.

-Failure alert function and FUSE.



Spesifikasi

-Input Current: 100V-240V AC, 47-63Hz

-Max Input Power:12-24W

-Input Stabilivolt Accuracy: -24V DC±2%

-Load Adjustment Rate: -24V DC±2%

-DC Output Broadband Noise Voltage: 3.4kHz-150kHz≤50m



Operate Environment:

-Temperature: -5 to 55 derajad

-Relative Humidity: 5%-9%RH

-Ventilate, clean, no conductive dust or corrosive gas.

-No danger of explosion



POE Power Protect:

-Output overvoltage Protect: -52V~-50V DC

-Overcurrent Protect (single circuit): 500Ma-1000Ma

-Overvoltage Protect: Input Voltage >; 290V-310V AC

-Overvoltage Recovery Point: Input Voltage >; 240V AC

-Undervoltage Protect: Input Voltage < 140V-155V AC

-Undervoltage Recovery Point: Input Voltage < 100V AC

-Temperature Protect: >;100 derajad



Indicator Light:

-Light On: Working

-Light Off:

-Short circuit or overload protection.

-Consu power is too high.

-Consu breakdown.

-Cable short circuit.

Paket Termasuk

-1 X POE Power Supply
