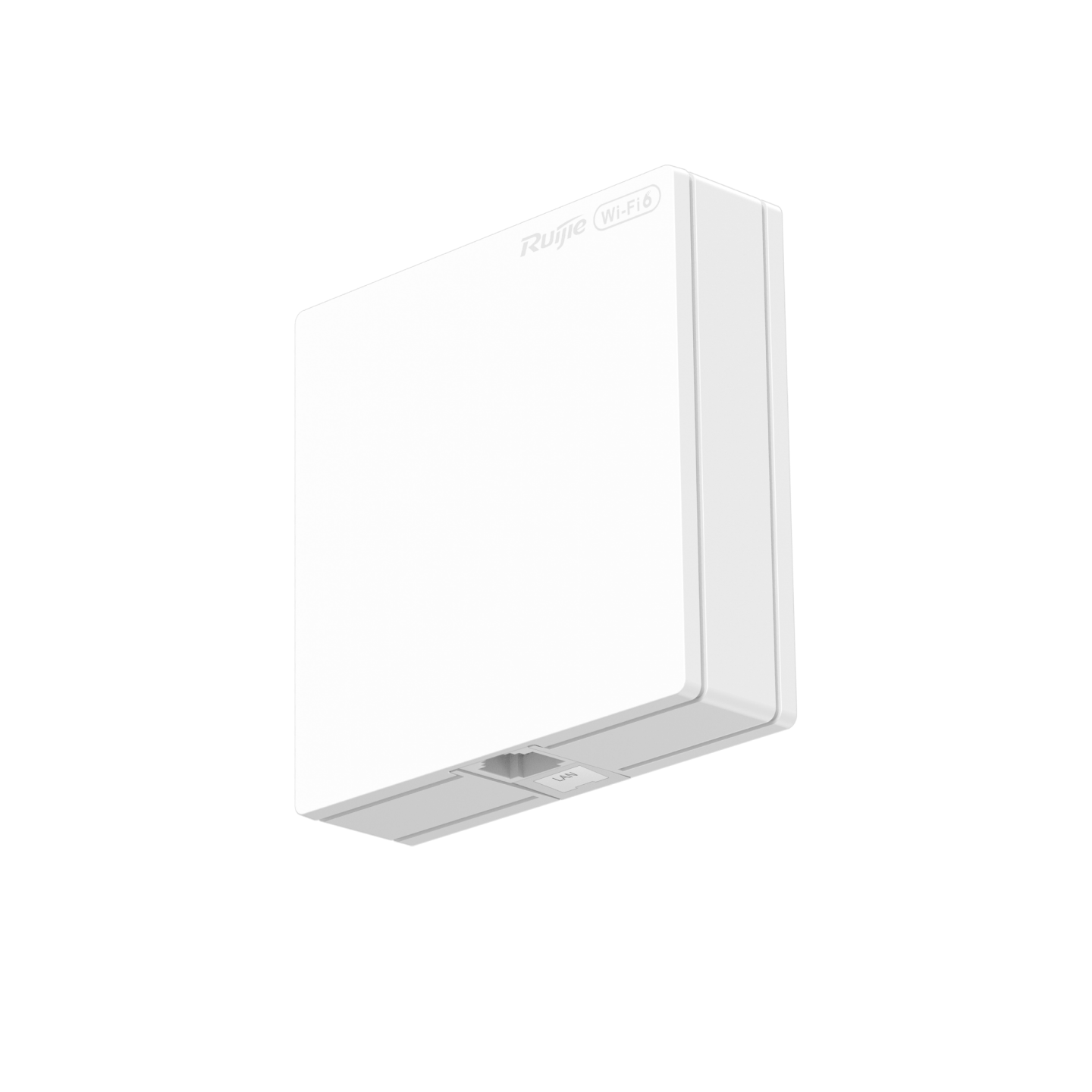

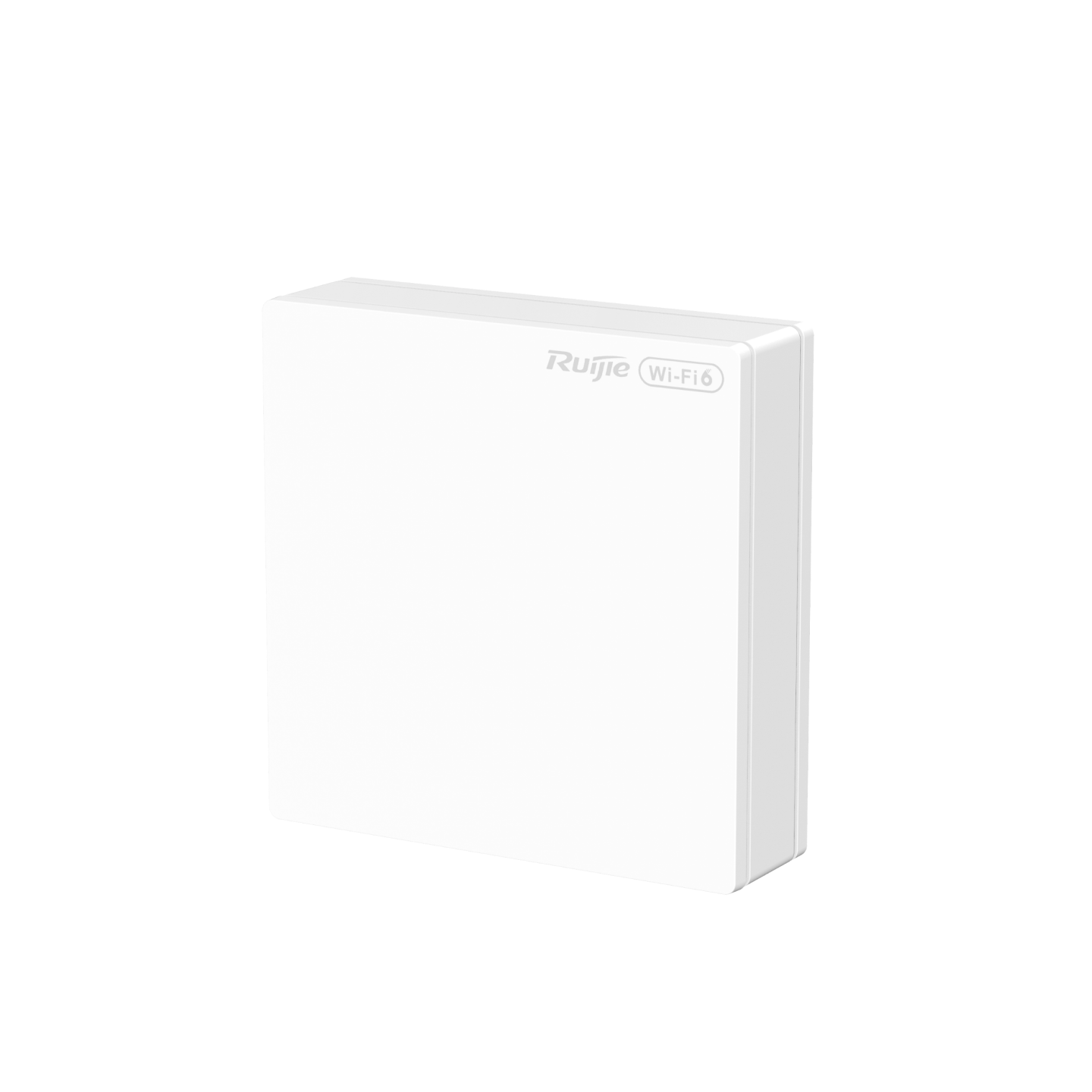

Ruijie RG-RAP62-Wall-Lite, Wi-Fi 6 AX3000 Dual-Band Wall-Plate AP

Rp. 1,560,000 / pcs

Highlight Features

• Wi-Fi 6 AX3000 speeds: Maximum 2401 Mbps in 5 GHz + Maximum 573 Mbps in 2.4 GHz
• Compatible with 86-mm and EU standard junction boxes
• Blending into the indoor environment
• Thickness-segmented design, with only 24.8 mm (0.98 in.) exposed on the wall
• Centralized management on Ruijie Cloud

Hardware Specifications

Wi-Fi Radio

Radio design

• Dual-radio
  4 spatial streams
  ● 2.4 GHz: 2 x 2, MU-MIMO
  ● 5 GHz: 2 x 2, MU-MIMO

Maximum wireless data rate

• 2974 Mbps

6 GHz wireless data rate

• No

5 GHz wireless data rate

• 2401 Mbps

2.4 GHz wireless data rate

• 573 Mbps

Antenna

Antenna

• 5 GHz: 1 built-in omnidirectional antenna
  Integrated 2.4 GHz and 5 GHz: 2 built-in omnidirectional antennas

Dimensions and Weight

Product dimensions (W x D x H)

• 86mm x 38mm x 86mm (3.39 in. x 1.50 in. x 3.39 in.)

Color

• White

Weight

• ≤ 0.25 kg (0.55 lbs.) (without packaging materials)

Port Specifications

Number of 10/100/1000BASE-T ports

• 2

Power Supply and Consumption

Power supply

• PoE/PoE+

Local power supply

• No

Dimensions of the DC connector

• No

PoE budget

• No

Maximum power consumption

• 11.2 W

Environment and Reliability

Operating temperature

• 0°C to 40°C (32°F to 104°F)

Mounting options

• Junction box

IP rating

• No

Software Specifications



WLAN

Maximum number of associated wireless clients

• 64 (2.4 GHz)
  256 (5 GHz)
  256 (2.4 GHz and 5 GHz enabled)

Maximum number of devices that can be managed

• 300

IP Service

IPv6

• Yes
