HS-OTDR100
OTDR MINI PRO SERIES / SMART OTDR

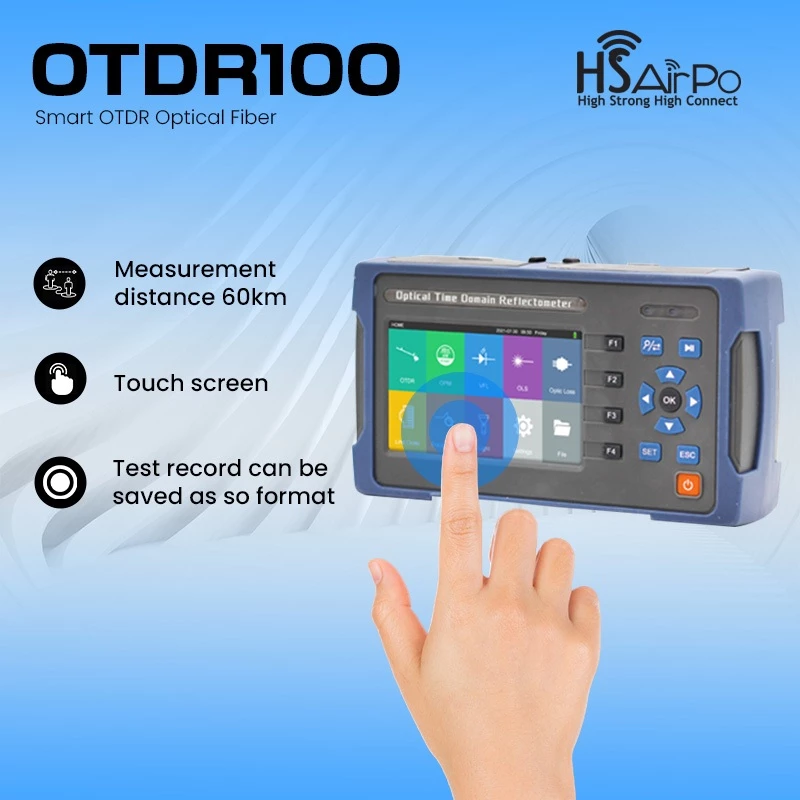

Features:
- Two wavelength: 1310/1550nm
- Measurement distance: 60km
- Touching screen
- Test record can be saved as so format
- Standard Function: OTDR, Optical Power Meter, Optical Light Source, Visual Fault Locator, Optic Loss, Light. Optional Function:Line Order, Tracing Test
- Editable file name and lineNo.
- Support upgrade
- Quick boot, it takes only 2 seconds to test
Specifications
OTDR Wavelength(nm) 1310/1550nm
Dynamic Range 22/20dB
Measurement Distance 0-60 km
Type of Fiber 9/125um SM
Type of Connectors FC/PC/; SC/PC (FC/APC SC/APC--Optional)
Peak Value of laser >=30mW
Unit Meter/ inch/ mile
Dead Zone of Reflection 2m
Dead Zone of attenuation Event 12m
Accuracy Distance(Reflection Event) About ±(1m+2 *10(-4)* distance)
Storage of records 200 groups
Visual Fault locator(VFL) Wavelength (nm) 650nm
Output power >=10mW
Mode CW,1Hz,2Hz
Fiber type SM
Optical Power Meter Measurement range dBm
-70~+10 dBm
-50~+26 dBm
Wavelength range(nm)
800~1650
Calibrated wavelength
850?1300?1310?1490?1550?1625
Detector InGaAs
Accuracy <±3% (-10dBm?22?)
Resolution Linearity:0.1%,Non-linearity:0.01dBm
Connector Changeable FC/PC SC/PC ( ST as Optional)
Optical Light Source Emitter FP-LD
wavelength (nm) 1310/1550nm
Connector FC/PC(SC/ST as optional)
Output power ≥-5dBm
Output stability(dBm) ±0.04@20?@15min
ModulatioN CW/270Hz/1KHz/2KHz
Fiber typeSM
Optic Loss
ConnectoR FC/ SC
Test Range 0-30dB
Accuracy 10%
Others
LCD 3.97inch,800*480pixels, IPS screen
Battery 7.4V/4400mAH Lithium-ion battery, >5000 tests
Temperature
Work temperature: -5 ~ 50 ° C, storage temperature: -10 ~ 60 ° C
Humidity 0~85%(Non-condensing)
Dimensions(mm) 190×84×52
Weight(g) 375
Standard Function OTDR, OPM, OLS, VFL, Optic Loss, Light
Optional Function Line Order, Tracing Test
