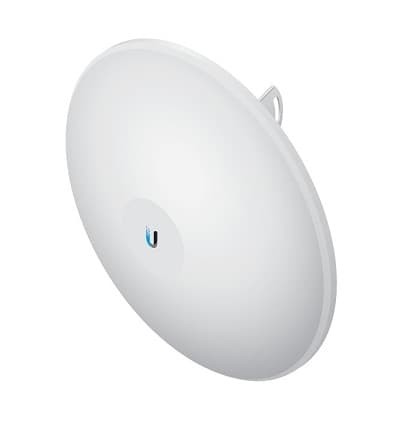

5 GHz WiFi antenna with a 450+ Mbps Real TCP/IP throughput rate.
High-Performance airMAX® ac Bridge Incorporating a dish reflector design with proprietary airMAX® ac technology, the PowerBeam™ ac is ideal for CPE deployments requiring maximum performance.
Features:
-Highly Efficient Antenna Beam Performance
-Custom Ubiquiti® airMAX® ac Processor
-Up to 450+ Mbps Real TCP/IP Throughput
-Innovative Snap and Lock Assembly

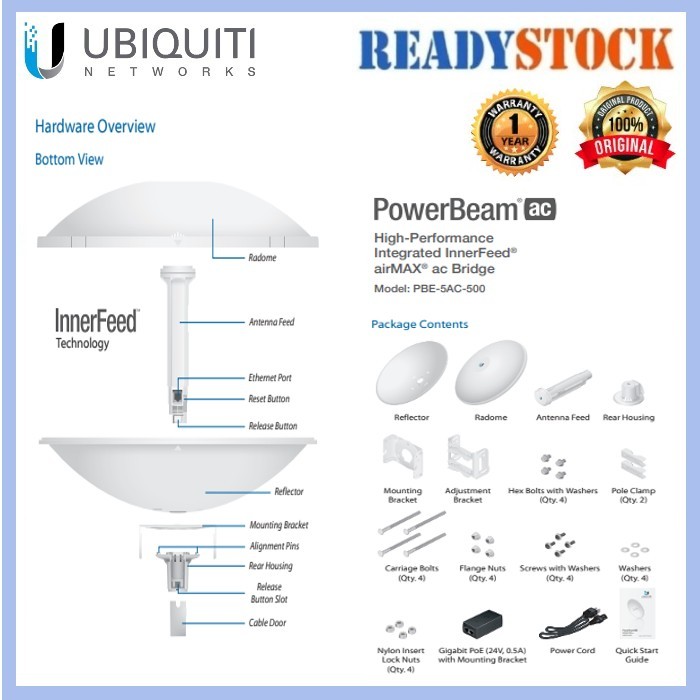

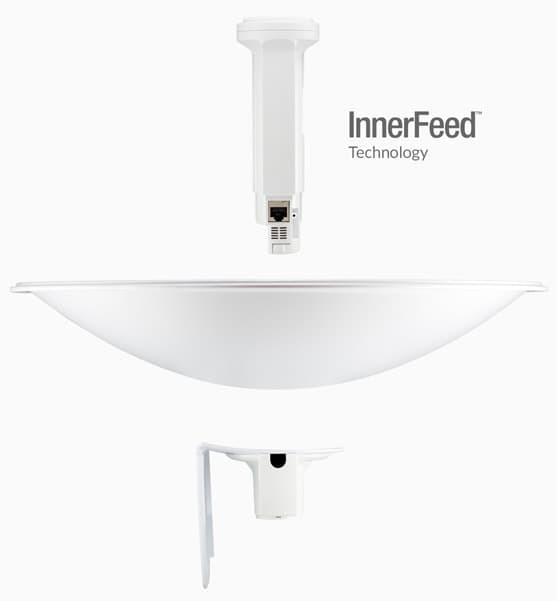

-Proprietary InnerFeed™ Technology
Power Supply : 24V, 0.5A Gigabit PoE
Max. Power Consumption : 8.5W
Power Method Supported : Passive PoE (Pairs 4, 5+; 7, 8 Return)
Voltage Range : 20-26VDC
Networking Interface : (1) 10/100/1000 Ethernet Port
Processor Specs : Atheros MIPS 74Kc, 720 MHz
Memory : 128 MB DDR2, 16 MB Flash
LEDs : (1) Power, (1) LAN, (4) WLAN
Signal Strength LEDs : Software-Adjustable to Correspond to Custom RSSI Levels
Max. VSWR : 1.5:1
Channel Sizes
-PtP Mode : 10/20/30/40/50/60/80 Mhz
-PtMP Mode : 10/20/30/40 Mhz
Polarization : Dual Linear
Enclosure : Outdoor UV Stabilized Plastic
Mounting : Pole-Mount (Kit Included)
Wind Loading : 264.6 N @ 96 km/h / (60 lbf @ 60 mph)
Wind Survivability : 96 km/h / (60 mph)
ESD/EMP Protection : Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature : -40 to 70° C (-40 to 158° F)
Operating Humidity : 5 to 95% Noncondensing
Wireless Approvals : FCC, IC, CE
RoHS Compliance : Yes
Gain : 27 dBi
