10/100Mbps 4fiber 4LAN fiber switch with passive PoE

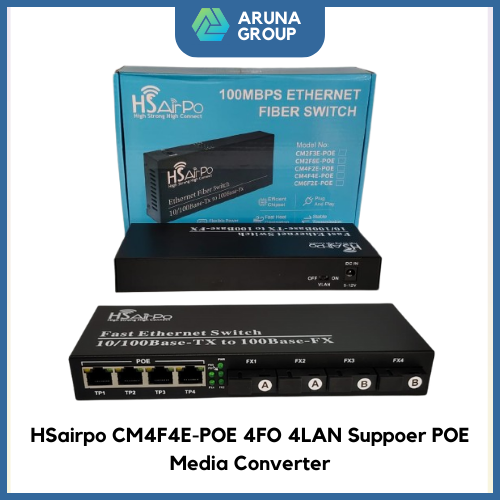

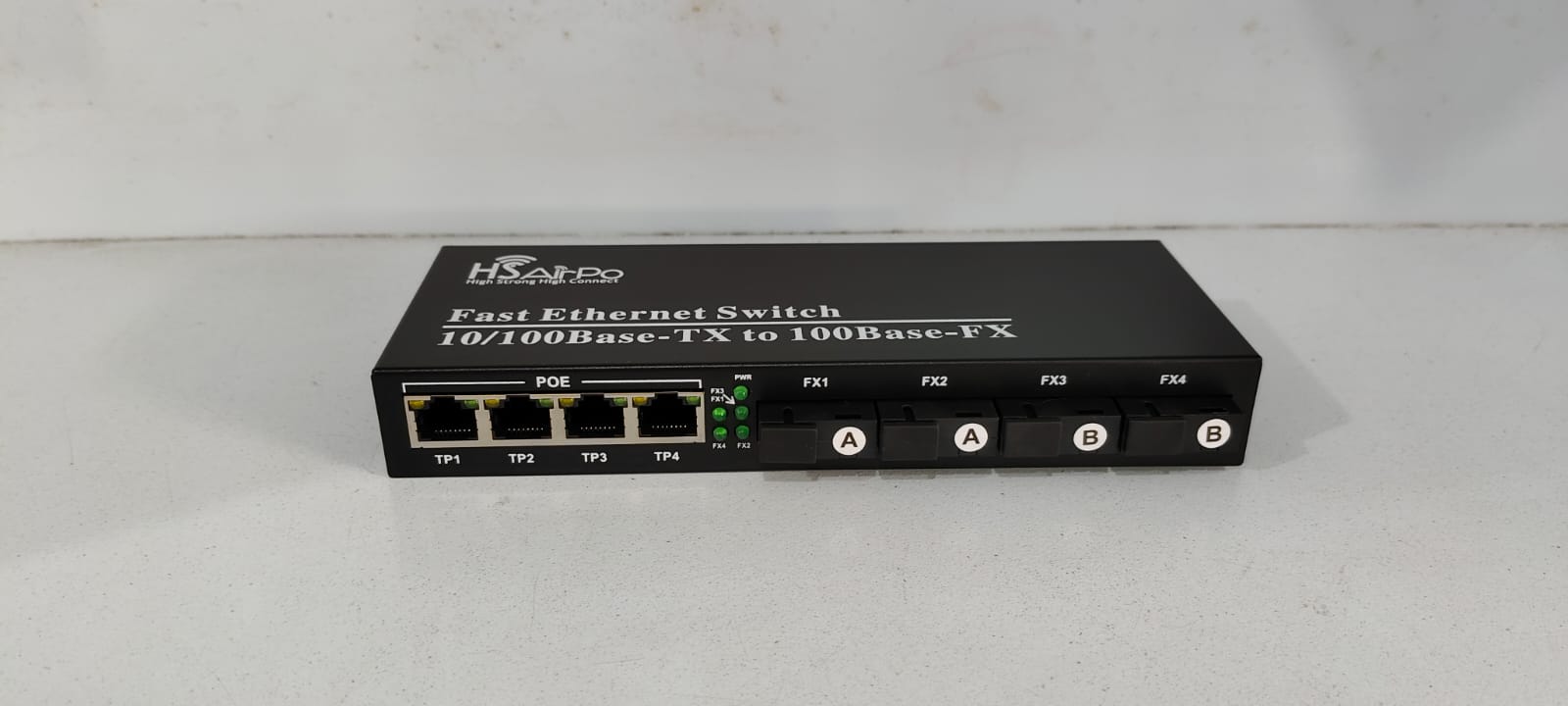

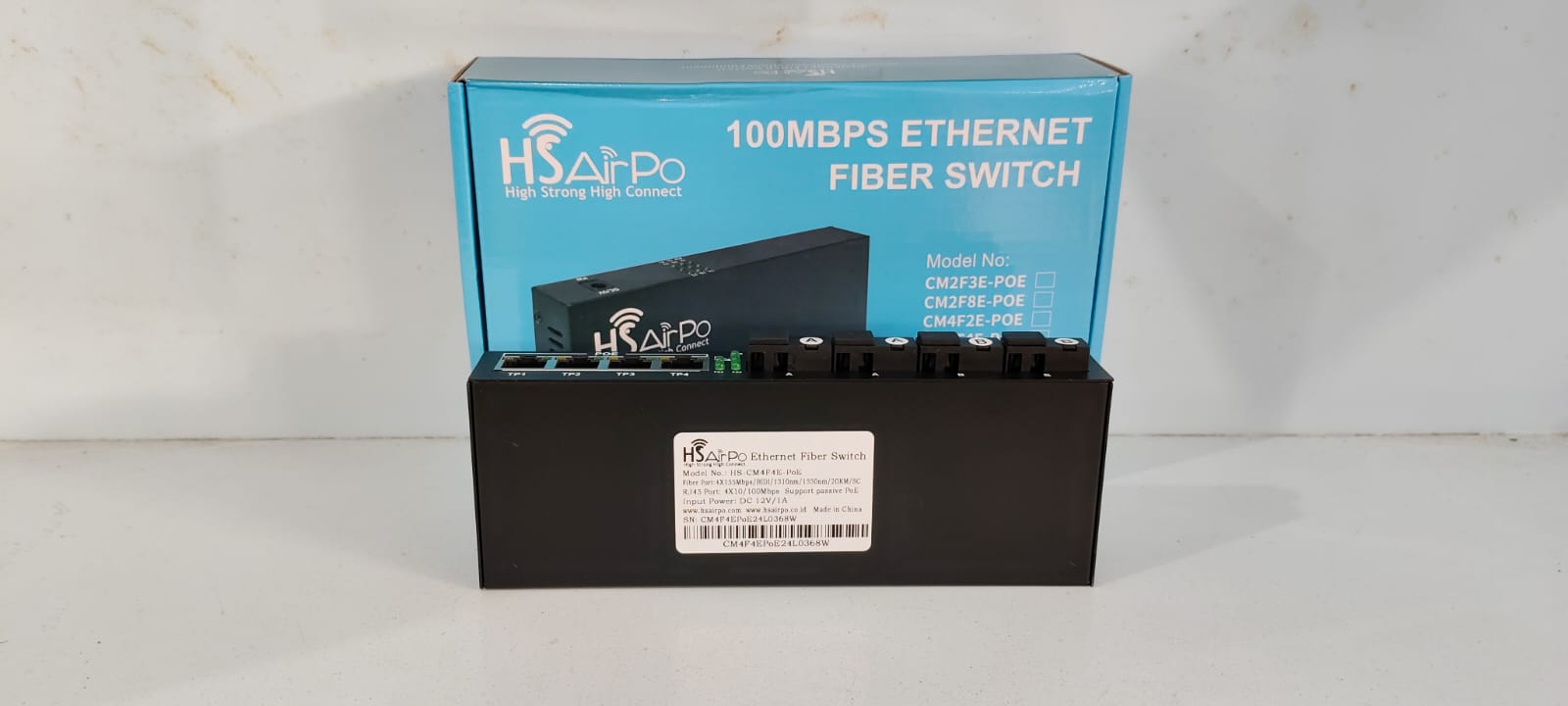

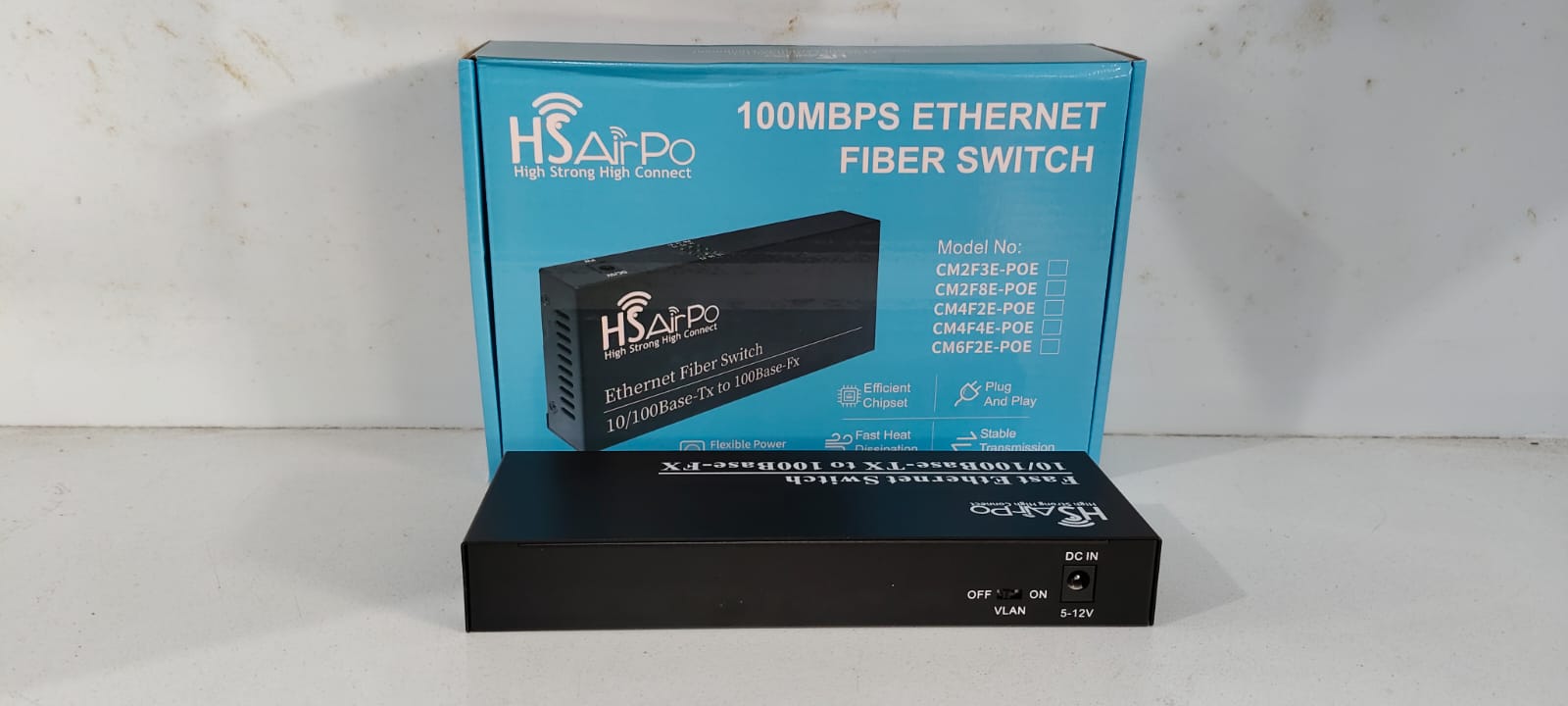

CM4F4E-POE ( 4 FIBER 4 ETHERNET SUPPORT POE )
Compatible with :
- Netlink
- Zimmlink
- other OEM
STANDARDS :
- IEEE802.3 10Base-T
- IEEE802.3u 100Base-TX/FX
- IEEE802.3x Flow control
- IEEE802.1d Spanning Tree
- IEEE802.1p QoS
ETHERNET PORT :
- Connector Rj45
- Data Rate 10/100M
- Distance 100m
- UTP Type UTP-SE or higher level
FIBER PORT :
- Connector SC
- Data Rate 155Mbps
- Optical Wavelength 850nm/1310nm/1490nm/1550nm
- Distance 20km
PERFORMANCE :
- Processing Type Store and Forward
- MAC Table Size 8K
- Jumbo Packet 1518 bytes
- Buffer Space 1Mbit
- Back bandwidth 0.6/1/1.2/1.2/1.6/1/6G
- Time Delay <150μm
POWER :
- Power type external power supply
- Input Voltage AC100V-240V 50/60Hz
- Connector DC Socket, support passive
- Input 5V
- Power Consumption 1.5W-2.5W
- MTBF 100,000 hours
TRANSMISSION DISTANCE :
- Twisted Pair 100m (CAT5e, CAT6 cables)
- Single mode 20km
PACKAGES INCLUDE :
- 2 x Fiber port A
- 2 x Fiber Port B
- 4 x Ethernet port
GARANSI 3 BULAN
