10/100Mbps 2fiber 4LAN fiber switch with passive PoE
HS-CM2F4E 10/100M 2 FIBER PORT AND 4 RJ45 PORT SINGLE FIBER OPTIC MEDIA CONVEERTER

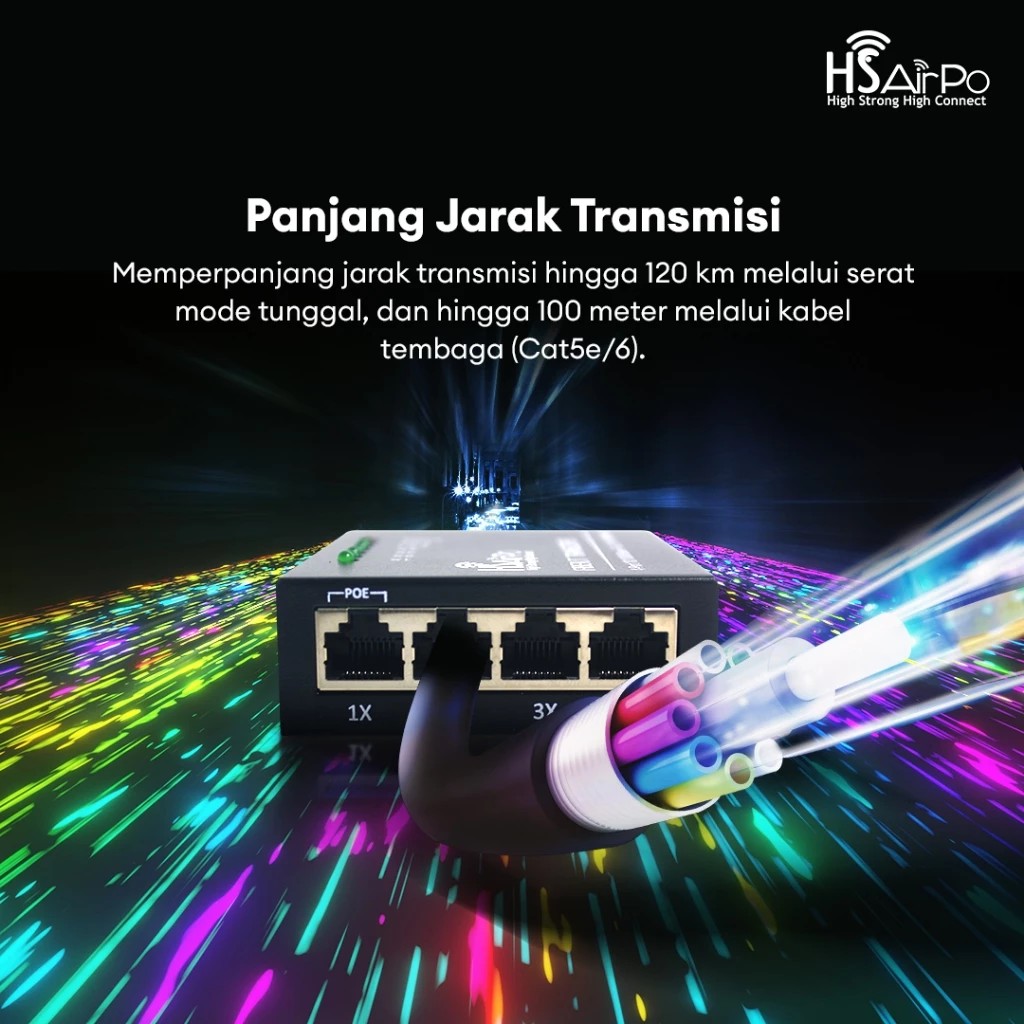

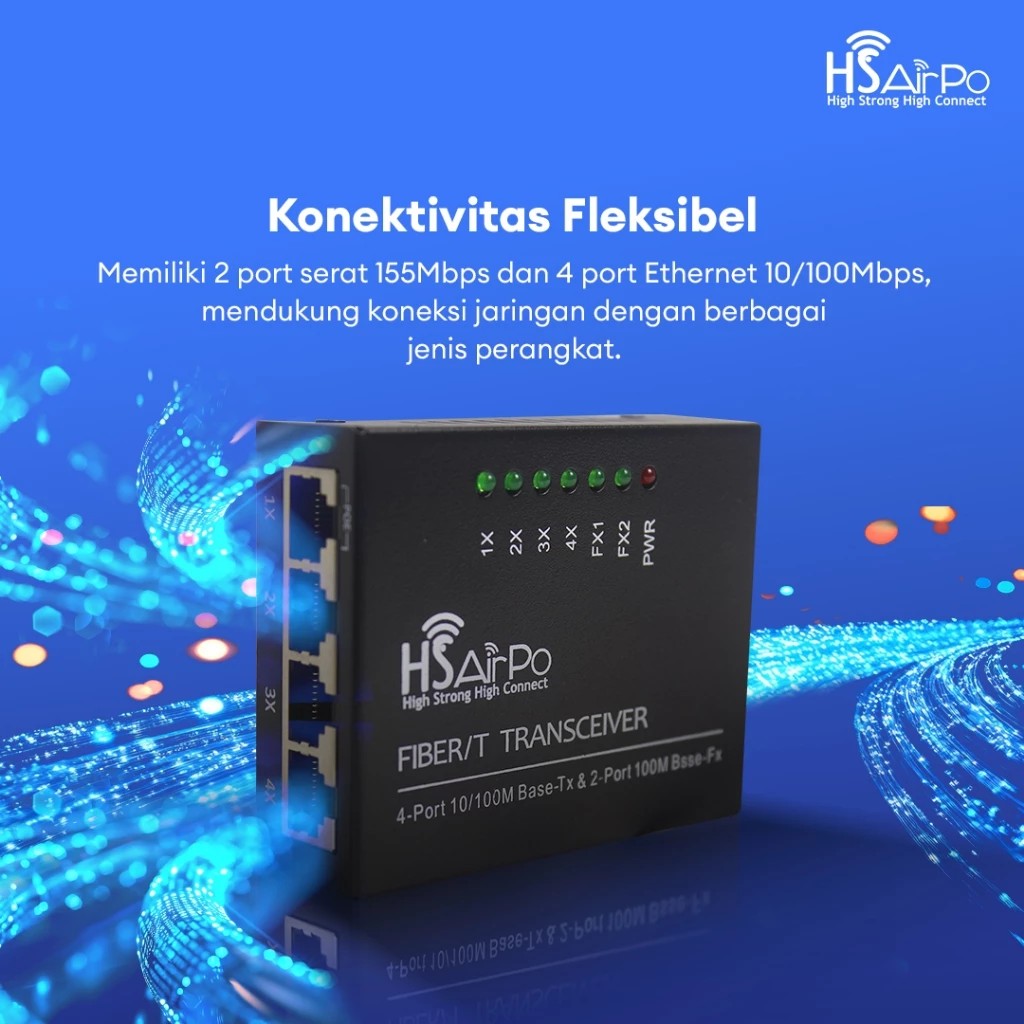

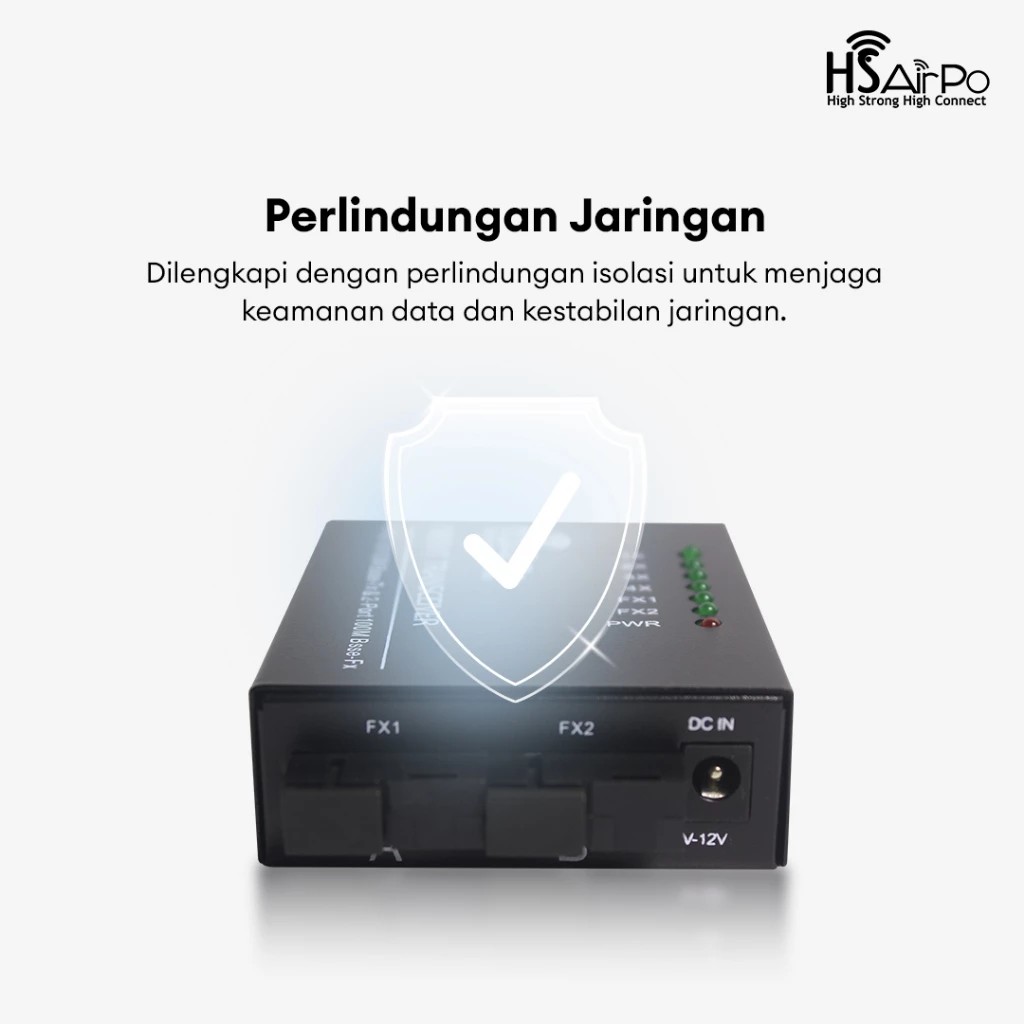

HS-CM2F4E is a 10/100Mbps adaptive fast Ethernet Media Converter. It has four 10/100Mbps UTP port and two 155Mbps fiber port. It extends the transmission distance of a network from 100m via copper cables to 120km. It can extend the transmission distance, and there are also many other advantages such as isolation protection, good data security, working stability and easy to maintain.
STANDARDS :
- IEEE802.3 10Base-T
- IEEE802.3u 100Base-TX/FXE
- IEEE802.3x Flow Control
- IEEE802.1p QoS
- IEEE802.1d Spanning Tree
ETHERNET PORT :
- Connector RJ45
- Data Rate : 10/100M Distance: 100m
- UTP Type : UTP-5E or higher level
FIBER PORT :
- 1*A AND 1*B
- Connector : SC
- Data Rate : 155Mbps
- Optical Wavelength : 850nm/1310nm/1490nm/1550nm
- Distance : 20km
PERFORMANCE :
- Processing Type : Store and Forward
- MAC Table Size : 8K
- Buffer Space : 1Mbit
- Jumbo Packet : 1518 bytes
- Back bandwidth : 0.6/1/1.2/1.2/1.6/1/6g
- Time Delay : <150
POWER :
- Power Type : External Power Supply
- Input Voltage : AC100V-240V 50/60Hz
- Connector : DC Socket
- Working Voltage : 5V

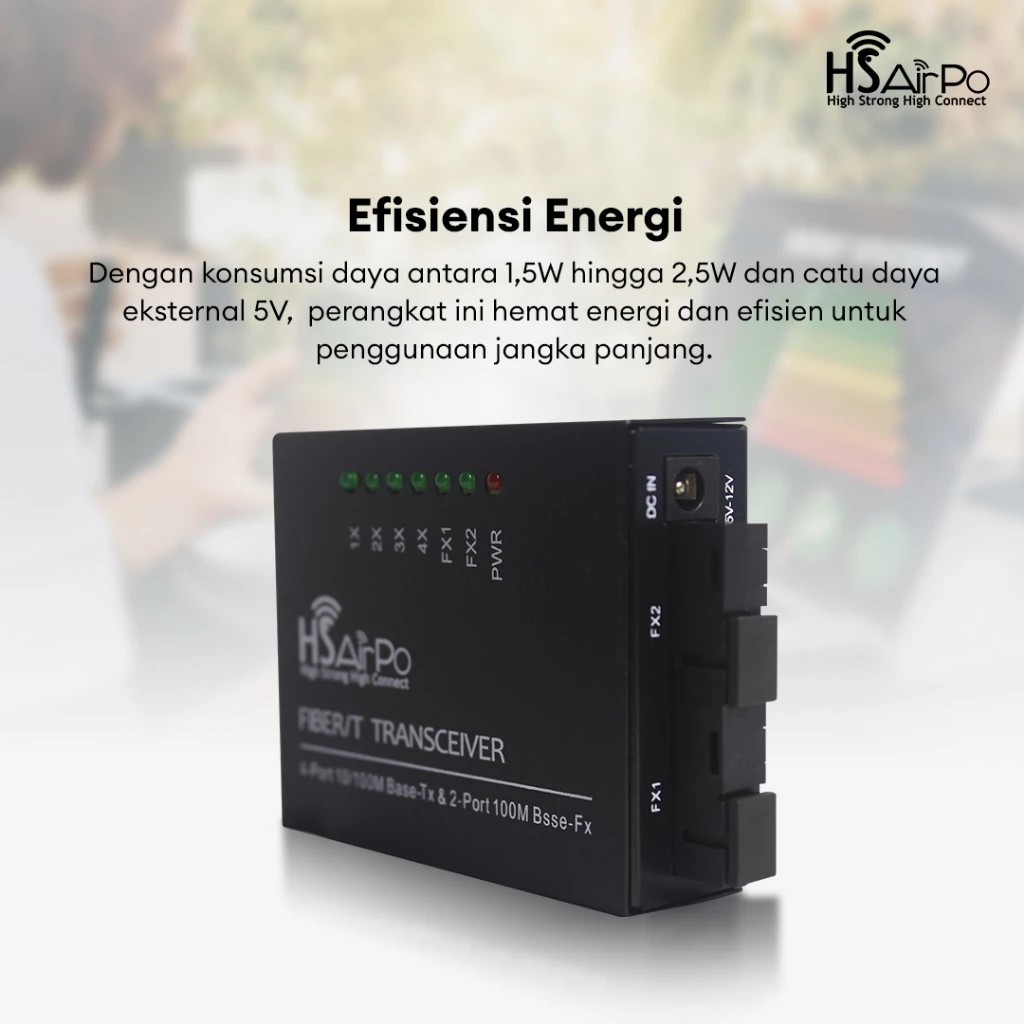

- Power Consumption : 1.5W - 2.5W
TRANSMISSION DISTANCE :
- Twisted Pair : 100m (CAT5e,CAT6 cables)
- Single-mode : 20km
