| hardware features | |
| Protocol standard | IEEE 802.11b, IEEE 802.11g, IEEE 802.11a, IEEE 802.11n, IEEE 802.11ac, |
| IEEE 802.11ax, IEEE 802.3, IEEE 802.3u, IEEE 802.3x | |

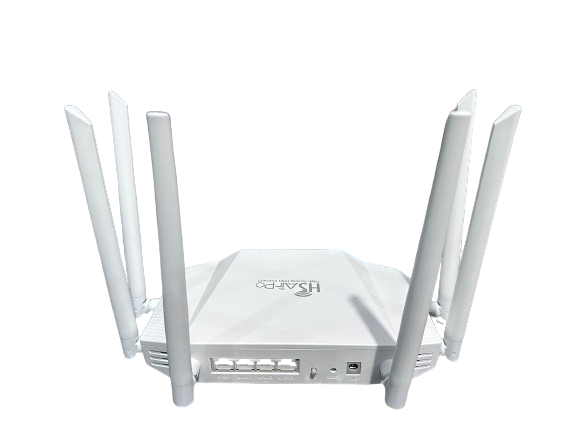

| interface | 1*10 /100M / 1000M WAN port, supports Auto MDI/MDIX |
| 3*10/100M / 1000M LAN Port, support Auto MDI/MDIX | |
| button | MESH (press for 1 second) |
| Reset (press and hold for 5 seconds) | |
| led | Three-color lamp design: green, red, blue |

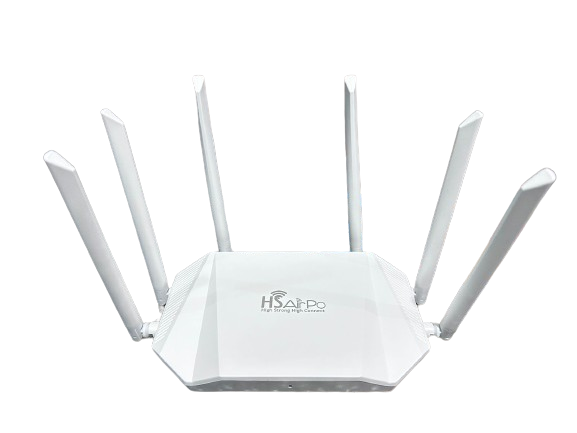

| antenna | External omnidirectional 5dBi gain non-removable antenna |
| Number of antennas | 6 |
| power supply | DC 12V/1A |
| Wireless Features | |
| basic skills | Wireless enable / disable |
| SSID broadcast enable / disable | |
| Channel selection: 1 ~ 13 (2.4G) | |
| 36 ~ 48 + 52~64+149 ~ 165 (5GHz) | |
| 2.4G bandwidth: 20MHz ,40MHz | |
| 5G bandwidth: 20MHz ,40MHz ,80MHz,160MHz | |
| 2.4G frequency | 24 12 ~ 2472MHz |
| 5G frequency | 5180~5240MHz?5250~5350MHz?5745MHz~5825MHz |
| 2.4G 2TR up to 574Mbps | |
| wireless transfer speed | 5G 2T2R up to 2402Mbps |
| power | 2.4G actual power: |
| 802.11b 2 2 ±1.5dBm | |
| 802.11g 21±1.5dBm | |
| 802.11n20 19±1.5dBm | |
| 802.11n40 19±1.5dBm | |
| 802.11ac40 17.5±1.5dBm | |
| 802.11ax40 17.5±1.5dBm | |
| 5G actual power: | |
| 802.11a 19±1.5dBm | |
| 802.11n20 18.5±1.5dBm | |
| 802.11n40 18.5±1.5dBm | |
| 802.11ac80 17.5±1.5dBm | |
| 802.11ax80 16.5±1.5dBm | |
| 802.11ax160 16.5±1.5dBm | |
| Operating mode | A P |
| Router | |
| Repeater | |
| wireless security | wireless MAC address filtering |
| WPA-PSK, WPA2-PSK, WPA3 -SAE, WPA/WPA2 -PSK, WP A2- PSK/ WPA3 - SAE | |
| WPS (PBC) | |
| Other features | Wireless host status display |
| Wireless site scan | |
| Seamless roaming between nodes | |
| Seamless roaming between frequency bands | |
| Wi- Fi settings | Wi-Fi basic settings (dual frequency integration, switch, wireless mode, SSID, PWD, encryption algorithm, channel, bandwidth, power adjustment) |
| Advanced Settings (Wireless Client Isolation, 802.11h, WMM Multimedia Acceleration) | |
| mesh properties | Multi- SSID (SSID, encryption method, PWD, encryption algorithm) |
| mesh switch, role selection, networking mode, mesh-top |
| software features | |
| network settings | Support WAN port connection type: PPPOE, dynamic IP, static IP |
| MAC address clone, I PV6 settings, Radvd settings, IPTV settings, I GMP settings | |
| LAN settings | DHCP server settings |
| Manage IP settings | |
| virtual server | Firewall Settings, Port Forwarding, UPnP, DMZ |
| advanced settings | Traffic statistics, D DNS settings, QoS settings, VPN settings, anti-rubbing network |
| System Management | System status, time setting, password management, configuration management, firmware upgrade, scheduled restart, system log |
| System Tools | Traffic Statistics |
| System log | |
| time zone setting | |
| Local WEB management control configuration | |
| File import and export | |
| Web software upgrade | |
| other | |
| size | 226 * 133 * 50mm |
| Use environment | Operating temperature:0 ? to 40 ? |
| Storage temperature : -40 ? to 70 ? | |
| Working humidity: 10% to 90%RH non-condensing | |
| Storage humidity: 5% to 90%RH Does not condense | |
