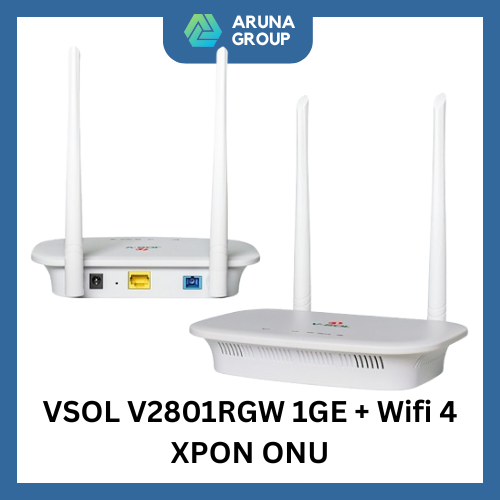

VSOL V2801RGW 1GE + Wifi 4 XPON ONU

Rp. 215,000 / pcs

○Hardware Parameter
Dimension	120mm×78mm×30m(L×W×H)
Net weight	0.15Kg
Operating condition	Operating temp: -10 ~ +55°C Operating humidity: 5~95% (non-condensed)
Storing condition	Storing temp: -40 ~ +70°C Storing humidity: 5 ~ 95% (non-condensed)
Power adapter	DC 12V, 0.5A, external AC-DC power adaptor
Power supply	≤6W
Interfaces	1GE+WiFi4
Indicators	POWER, LOS, PON, LAN, WiFi
○Interface parameter
PON interface	1 XPON port(EPON PX20+ & GPON Class B+) SC single mode, SC/UPC connector TX optical power: 0～+4dBm RX sensitivity: -27dBm Overload optical power: -3dBm(EPON) or -8dBm (GPON) Transmission distance: 20KM
LAN interface	1*GE Auto-negotiation RJ45 ports
WiFi interface	IEEE802.11b/g/n(TX power:17dBm/16dBm/ 15dBm),300Mbps Support 13 Channels

○Function Data
PON mode	XPON Dual mode , Can access to mainstream EPON/GPON OLTs
Software mode	Routing mode
WiFi	WiFi Authentication: WEP/WAP-PSK(TKIP) /WAP2-PSK(AES) Support: multiple SSID
Firewall	DDOS, Filtering Based on ACL/MAC/ URL.
Layer2	802.1D&802.1ad bridge, 802.1p Cos, 802.1Q VLAN.
Layer3	IPv4/IPv6, DHCP Client/Server, PPPoE, NAT , DMZ ,DDNS.
Multicast	IGMP v1/v2/v3 , IGMP snooping
Security	Flow & Storm control, Loop Detection
O&M	WEB/TELNET/OAM/OMCI/TR069
