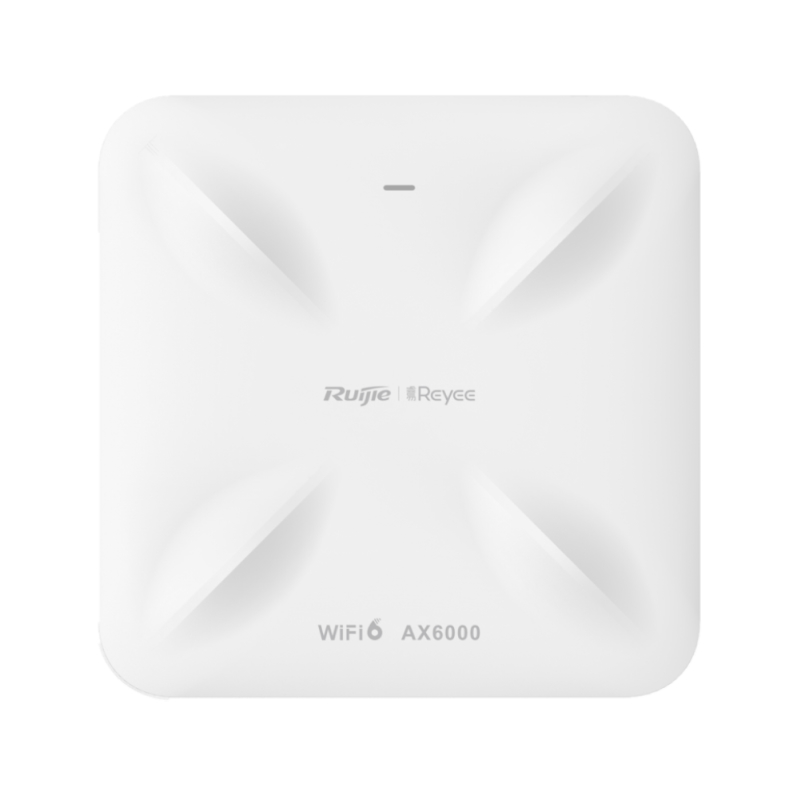

Detail Spesification : RG-RAP2260(H) Reyee Wi-Fi 6 AX6000 High-density Multi-G Ceiling Access Point - Ruijie Reyee
Specification
| Model | RG-RAP2260(H) |
| Protocol | Wi-Fi 6 (IEEE 802.11ax) Wi-Fi 5 (IEEE 802.11ac Wave 2) Wi-Fi 4(IEEE 802.11n) 802.11a/b/g |
| Operating Bands | 802.11b/g/n/ax : 2.400 GHz - 2.4835 GHz 802.11a/n/ac/ax : 5 GHz: 5.150 GHz - 5.350 GHz, 5.470 GHz - 5.725 GHz, 5.725 GHz - 5.850 GHz (country specific) |
| Antenna | Built-in Omnidirectional Antennas (2.4 GHz: 3dBi, 5 GHz: 4dBi) |
| Recommended Wi-Fi Coverage Radius | 2.4GHz: 40 meters 5GHz: 70 meters The Wi-Fi coverage is related to the installation environment of the access point. |
| Spatial Streams | 2.4 GHz: 4x4 MU-MIMO 5 GHz: 4x4 MU-MIMO |
| Max Throughput | Up to 1148 Mbps at 2.4 GHz Up to 4804 Mbps at 5 GHz |

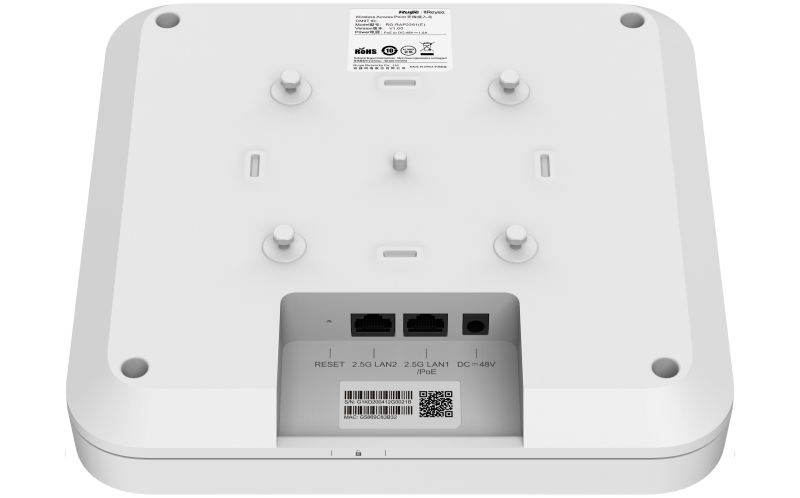

| Service Ports | 2 x100/1000/2500 Base-T port 1x DC port 1x Reset button |
| Power Supply | IEEE 802.3bt PoE DC 48V/1A |
| Power Consumption | ≤ 40 W |
| Operating temperature | 0°C - 40°C |
| Storage temperature | -40°C - 70°C |
| MTBF | >400000H |
| Maximum number of clients | 512 |
| Recommended number of clients | 130 |
| Maximum Number of SSIDs | 8 |
