Fig-8 ARMOURED Optic Fiber Cable GYXTC8S G652D 2 Core 2km

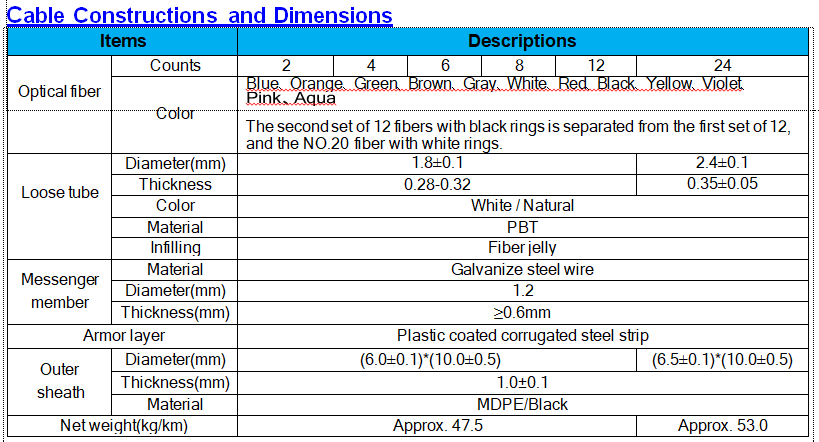

Cable Constructions and Dimensions：
Loose tube
Diameter(mm) : 1.8±0.1
Thickness : 0.28-0.32
Color : White / Natural
Material : PBT
Infilling : Fiber jelly
Messenger member
Material : Galvanize steel wire (anti karat)
Diameter(mm) : 1.2mm (7*0.4mm)
Thickness(mm) : ≥0.6mm
Armor layer : Plastic coated corrugated steel strip
Outer sheath
Diameter(mm) : (6.5±0.5)*(11.0±0.5)
Thickness(mm) : 1.0±0.1
Material : MDPE/Black

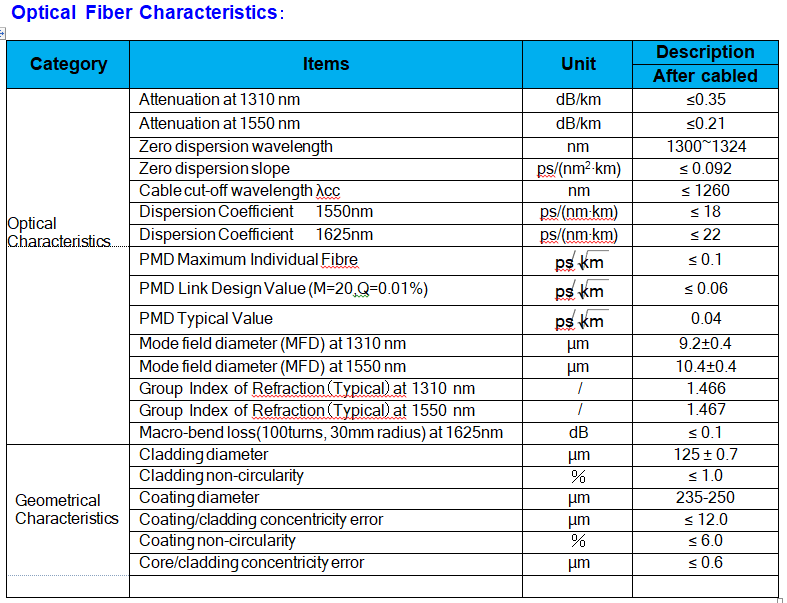

Optical Characteristics
Attenuation at 1310 nm : dB/km ≤0.35
Attenuation at 1550 nm : dB/km ≤0.21
Length : 2km
Net weight(kg/km) : Approx. 47.5
